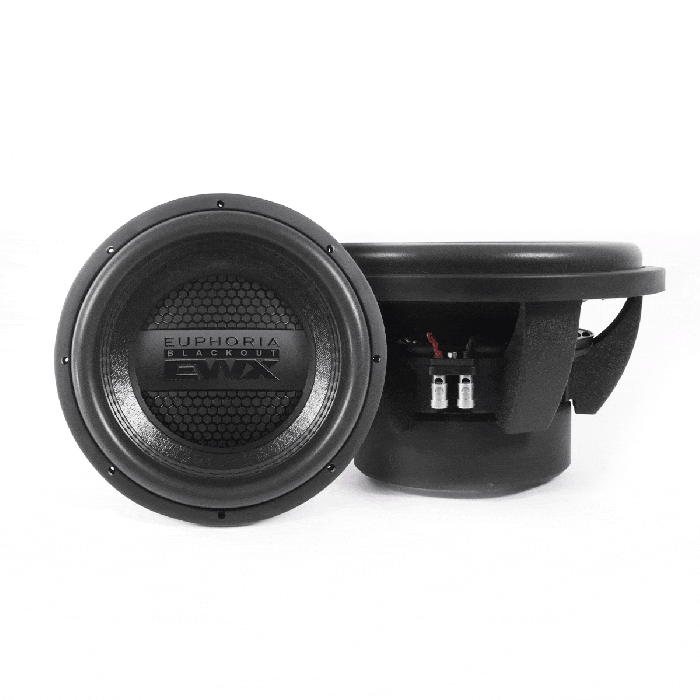

EWXB12D4 Black out 12”1000 Watt 4Ω DVC - 3" Voice Coil - Subwoofer

A dealer agreemnet must be on file before this item is shipped.
Interested in the benefits of Euphoria? Click Here

 Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround along with the die-cast aluminum vented basket allows for a maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

- 3″ High-Temperature Voice Coil
- 145 oz. Ceramic Ferrite Magnet
- High-Grade Low Carbon Steel On Top and Bottom Plate
- Designed to Optimize SPL Performance
- High Excursion Spider Designed
- 1″ High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Dual 4 Ohm Voice Coils

PHYSICAL STRUCTURE
- Outside Diameter (A): 12.68″ (322mm)
- Cutout Diameter (B): 11.26″ (286mm)
- Mounting Depth (C): 6.02″ (153mm)

GENERAL SPECIFICATIONS
- Structure: 12″ (30.48cm) Woofer
- Dynamic Power Handling: 2500 Watts
- Nominal Power Handling: 1000 Watts
- Impedance: Dual 4Ω Voice Coil

PARAMETERS
- Resonant Frequency (fs): 41.415Hz
- D.C. Voice Coil Resistance (Re): 3.6Ω + 3.6Ω
- Mechanical Quality Factor (Qms): 3.656
- Electrical Quality Factor (Qes): 0.652
 -Total Quality Factor (Qts): 0.553
- Equivalent Air Volume to Cms (Vas): 11.764 L
- Mass of Diaphragm/Coil (Mms): 247.161 g
- Force Factor (Bl): 25.156 N/A
- Sound Pressure Level (SPL): 83 dB

- RECOMMENDED ENCLOSURES
- Woofer Cut-out: 11.26″ (286mm)
- Mounting Depth: 6.02″ (153mm)
- Sealed Box: 1.49 ft3 (35.39L)
- Vented Box: 1.8 ft3 (51L)
- Vent Area: 12.57 in2 (81.09 cm2)
- Vent Length: 10″ (25.4cm)
- Tuning: 38Hz
- Dynamic Power: 2500 Watts
- Nominal Power: 1000 Watts
