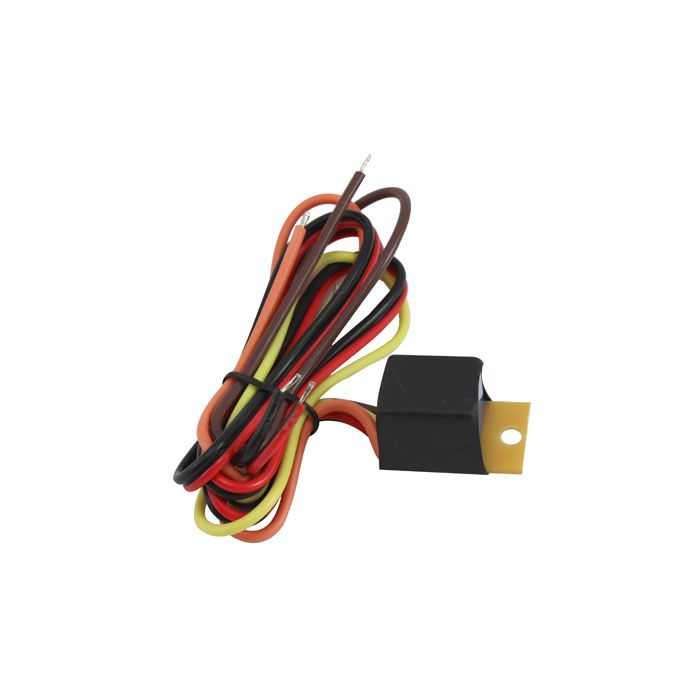

12V 5-Pin Mini Prewired Relay - Accele - 5083PWMR

12V 5-Pin Mini Prewired Relay - Accele - 5083PWMR

Features

• Micro relay with 18 inch pre-wired leads
• perfect for tight fit locations like behind radios or kick panels
• 15 amp / 30 amp rated contacts
• SPDT – Single pole dual throw
• 12 Vdc rated coil with minimum 8 volt to trigger
• Power consumption @ 12Vdc 35 mA
• Dimensions 3/4″ (w) x 1″ (D) x 2″ (H) with terminals and tab

Wiring Colors

• Red – Positive 12 volts for the coil
• Black – Ground for the coil
• Orange and Yellow are Normally closed contacts
• Yellow and Brown are Normally open contacts
